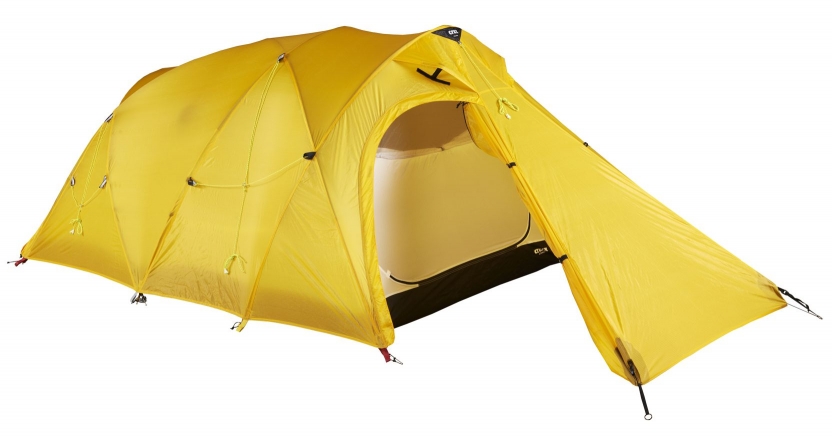

X3 Bunker
£749 / €899 / $975

The X3 Bunker is the latest addition to the crux range and our biggest tent. Like the smaller X2s, the main inner tent has an asymmetric geodesic design, but - unusually - is configured around five poles. The benefit of the fifth pole is to help create more vertical walls for greater space, a stronger roofline for improved snow-loading, and smaller wall panels for better inner-fly separation.

Like all crux tents, the X3 Bunker is made from the strongest fabrics available to ensure not only full weather protection, but long-term durability as well.

The X3 Bunker has two porches. The main front porch has two doors, one on each side. The rear porch has a single door. The X3 offers a perfect balance of space, strength and low weight.

Features
Extended, spacious front porch with a door on each side
Rear porch with single entrance
Strong asymmetric design
Internal storage pockets
Fourteen guy points (4 x 3-way attachment and 2 single)
Two front and single rear vents in flysheet

Colours

Red
Green
Gold

Technical Specifications

People 3
Total weight 3.70 kg (complete)
Flysheet

72 g/m2, 50 denier, high-tenacity nylon 6.6 ripstop
7,000 mm hydrostatic head, double-sided, silicon coating

Groundsheet 92 g/m², 70 denier, ripstop nylon
7,000 mm hydrostatic head, TPU coating
Inner canopy 35 g/m², 30 denier, ripstop, high-tenacity nylon 6.6
Poles 5 x 10.0 mm Ø DAC Featherlite
Guylines 6 x 2.00 mm Dyneema with mini-Linelok adjusters
Pegs 16 x 7001-T6 square-section alloy pegs, 12 g each
Packed size

55 cm x 22 cm Ø

Made In China

Availability

Gold will not be available in 2017.

Dimensions

Inner length 230 cm
Inner width 150 cm
Inner height 115 cm
Porch (front) 130 cm
Porch (rear) 50 cm

Buy Accessories

The following accessories are available for the X3 Bunker:
Footprint & porch groundsheet combination
Replacement poles

Care & Maintenance

Storage
Always ensure your tent is completely dry after a trip before packing it away for any length of time. Both flysheets and inners can get stains and mildew if stored in a damp condition – and once these occur, they are almost impossible to remove.

Flysheet cleaning
The best way to clean your X3 Bunker is simply to pitch the tent and wipe down with a cloth using a warm water and detergent mix. Never machine wash.

Groundsheet cleaning
As with the flysheet, wipe down with a cloth using a warm water and detergent mix. Never machine wash – this will cause the PU coating to delaminate.

Poles
Over time, the elastic cord inside the poles may lose its stretch. In this case, unscrew the pole foot at one end, untie the elastic and pull it through until there is sufficient tension. Retie it to the pole foot, cut off the excess elastic and screw the pole foot back in. Don't let go of the elastic or you will find yourself re-threading all the sections!

Flysheet seams
Very occasionally, insufficient tension in the stitching may mean that some water can seep through tent seams. The area around the vent panels is the most susceptible to this, for the reason that sewing three panels together is more difficult that sewing a straight seam joining just two panels.
Any such water seepage can be easily rectified by applying seam-sealant.
Before you ask: we can’t tape the seams of our X2 tents because they are silicon-coated on both sides, and tape just doesn’t stick properly.
